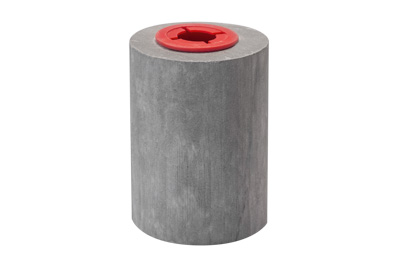

Reinforcement support made of fibre concrete, c 30 mm, heigth 50 mm, external diameter 35 mm
Item No. FBSP53530
Price
1,08 €/pcs.
Technical Data
| Concrete cover |
30 |
mm |
| Height |
50 |
mm |
| External diameter |
35 |
mm |
| Lower tolerance limit concrete cover |
28 |
mm |
| Upper tolerance limit concrete cover |
32 |
mm |
| Storage unit |
Pce |
|
| Packaging unit |
250 |
Pcs |
| Sack content |
250 |
pce/bag |
| Pallet content |
10.000 |
Pcs |
| Pallet content |
40 |
Packaging unit |
| Weight |
0,100 |
kg/pce |
| Weight |
25,00 |
kg/packaging unit |
| WG: |
50 |
|
Description
Reinforcement support
- Made of fibre-reinforced concrete for supporting rebars
- The reinforcement support consists of a fibre-reinforced concrete cylinder and a plastic dowel for fixing the reinforcement
- The plastic dowels automatically clamp the reinforcing bars when pushed into the dowels
